Intellinova® Parallel EN online system
Intellinova® Parallel EN is a high-performance online system, ideally suited for condition monitoring of industrial equipment with high availability demands. This robust monitoring unit is designed to manage demanding industrial environments and complex operating conditions in all industries.

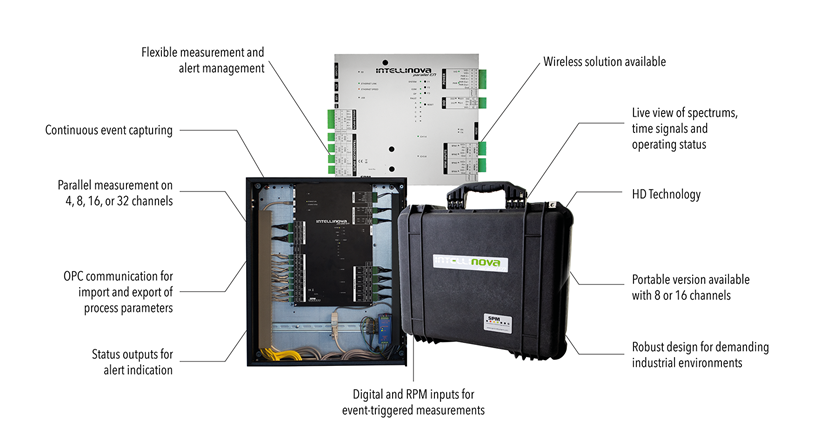

Intellinova Parallel EN continuously monitors your critical equipment, capturing relevant events without delay. Four, eight, sixteen or thirty-two channels can be used for vibration and/or shock pulse measurement with the DuoTech accelerometer. Four, eight, or sixteen RPM channels can be utilized for data acquisition on machinery with complex drives, even under variable operating conditions. The system tracks and manages changes in process and operating conditions, providing a reliable snapshot of equipment condition for entire machines. Measuring assignments can be set up to trigger individual channels or multiple system units in parallel and synchronously.
Condition monitoring for low-speed applications
The system uses patented HD Technologies for condition monitoring, making it ideal for low-speed applications (starting from below 0.1 RPM) such as agitators, crushers, and conveyors, as well as gearboxes, including planetary gears.
Advanced functionality makes the system ideal where measurement is time-critical due to short process cycles, for example:
- Rolling mills
- Railcar dumpers
- Press nips
- Winders
Further examples include lifting and hoisting equipment such as cranes or drop sections. Intellinova Parallel EN is also suitable for more straightforward applications like motors, pumps, and fans.
Intellinova Parallel EN can be run alongside its siblings in the Intellinova family of online systems in an integrated system, or as stand-alone units.
"We continue to invest in SPM equipment to increase plant availability by avoiding bearing damage that may develop into failure."
Andreas Lindblom, Maintenance Manager mechanical workshop, Södra Cell Värö (Using Intellinova Parallel EN)

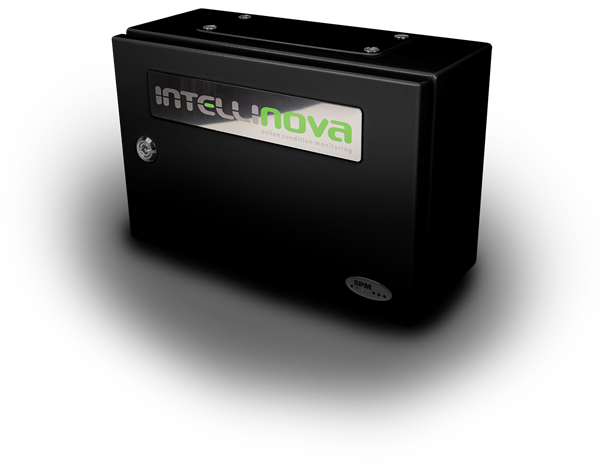

Four-channel online monitoring system
The Intellinova Parallel EN version with four channels perfectly combines powerful features and first-class performance.
- Ideal for compact machinery
- Next-generation digital platform technology
- Excellent computation capacity
- Cost-effective installation in tight locations
- Wi-Fi accessory available
SUPREME EFFICIENCY
PERFECT TIMING
VERSATILE AND POWERFUL
NEED AN EX VERSION?
By clicking “Submit”, you agree that your message and personal details will be sent by email to relevant recipient(s) at SPM Instrument. You hereby also agree that SPM Instrument and its subsidiaries will have access to the information you have provided and that these data will be stored on our email server. The data will not be saved in any other way. We will not use this information to contact you about matters other than those specified in your request. We will not share your information with third parties.
Features
Supreme condition monitoring efficiency
Intellinova Parallel EN continuously monitors your critical equipment, capturing relevant events without delay. Four, eight, sixteen, or thirty-two channels can be used for vibration and/or shock pulse measurement with the DuoTech accelerometer. Four, eight, or sixteen RPM channels can be utilized for data acquisition on machinery with complex drives, even under variable operating conditions. For those requiring a more flexible solution, Intellinova Parallel EN with sixteen channels is available as a portable version – ideal for demos or test installations that require the same high-performance solution as the original version.
The system tracks and manages changes in process and operating conditions, providing a reliable snapshot of equipment condition for entire machines. Measuring assignments can be set up to trigger individual channels or multiple system units in parallel and synchronously. The Condmaster diagnostic and analysis software offers user-defined filter settings, live spectrums, and live views of the state of all connected units.
Measurement technologies
Intellinova Parallel EN implements the most sophisticated and efficient technologies available for monitoring vibration levels, bearing condition, and lubrication effectiveness:
- HD ENV, high-definition vibration enveloping technology for detection of early-stage gear and bearing faults providing crystal clear spectrums and time signals
- SPM HD, high-definition shock pulse monitoring technology for measurement with supreme signal-to-noise performance and very high resolution
- SPM LR/HR HD, shock pulse measurement method
- Broadband vibration measurement according to ISO 2372 or ISO 10816
- FFT with machine fault symptom evaluation
- User-defined measurements via analog inputs or OPC, for example, pressure, flow, and load.
Typical Intellinova Parallel EN applications
- Wind turbines
- Rolling mills
- Railcar dumpers
- Converters
- Agitators
- Crushers
- Conveyors
- Press nips
- Winders
- Cranes
- Drop sections
Technical overview

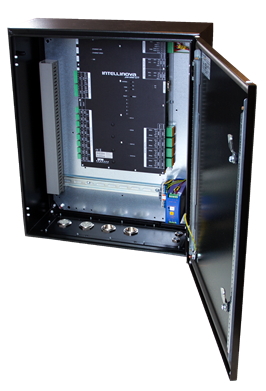

Intellinova Parallel EN is a powerful measuring system for continuous monitoring of machine condition. The cabinet, intended for wall mounting, is robust and sealed for use in harsh environments. The 16-channel system unit can be installed in a 19-inch rack for space-preserving installation of multiple units.
Characteristics | INSEN4 | INSEN8* | INSEN16* | INSEN32 |
Powder-coated steel cabinet | 360x240x155 mm (14.2x9.4x6.1 in) |
400x400x210 mm (15.7x15.7x8.3 in) |
500x600x210 mm (19.7x23.6x8.3 in) |
500x600x210 mm (19.7x23.6x8.3 in) |
Stainless steel cabinet | – | – | 600x600x210 mm (23.6x23.6x8.3 in) |
– |
19-inch rack | – | – | 482x132(3U)x365 mm (19x5.2(3U)x14.4 in) |
482x132(3U)x365 mm (19x5.2(3U)x14.4 in) |
System unit | 268x158x43 mm (10.5x6.2x1.7 in) |
288x230x40 mm (11.3x9.1x1.6 in) |
275x400x40 mm (10.8x15.7x1.6 in) |
System unit for INSEN16 x 2 |
Measuring channels** | 4 | 8 | 16 | 32 |
Analog inputs | 2 | 2 | 4 | 8 |
RPM inputs | 4 | 4 | 8 | 16 |
Digital inputs/outputs | 2/2 | 2/2 | 4/4 | 8/8 |
*) Also available in a portable version in a MIL standard plastic carrying case with connectors, internal measuring cables, and power supply unit.
**) Both vibration and shock pulse measurements can be performed using DuoTech® accelerometers.
